Metalworking is the process of working with metals to create individual parts, assemblies, or large scale structures. The term covers a wide range of work from large ships and bridges to precise engine parts .It therefore includes a correspondingly wide range of skills, processes, and tools. Modern metalworking processes, though diverse and specialized, can be categorized as forming, cutting, or joining processes. Today's machine shop includes a number of machine tools capable of creating a precise, useful workpiece.

The three principal machining processes are classified as turning, drilling and milling. Other operations falling into miscellaneous categories include shaping, planing, boring, broaching and sawing.

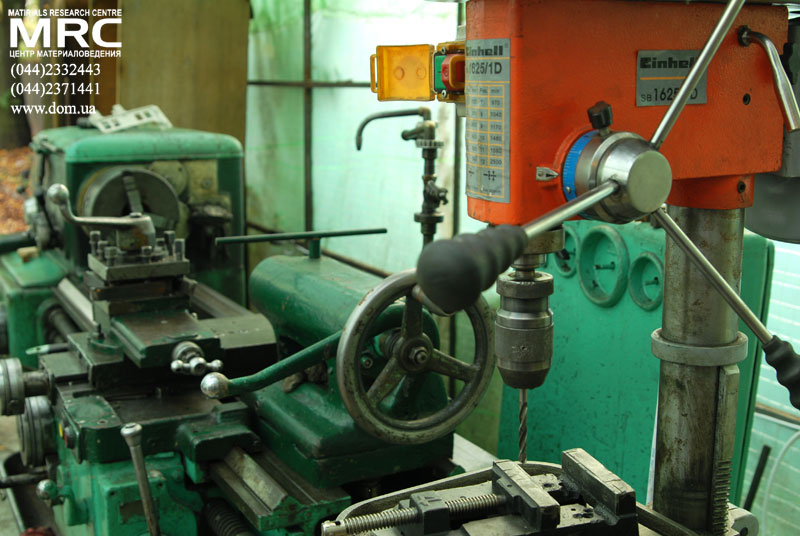

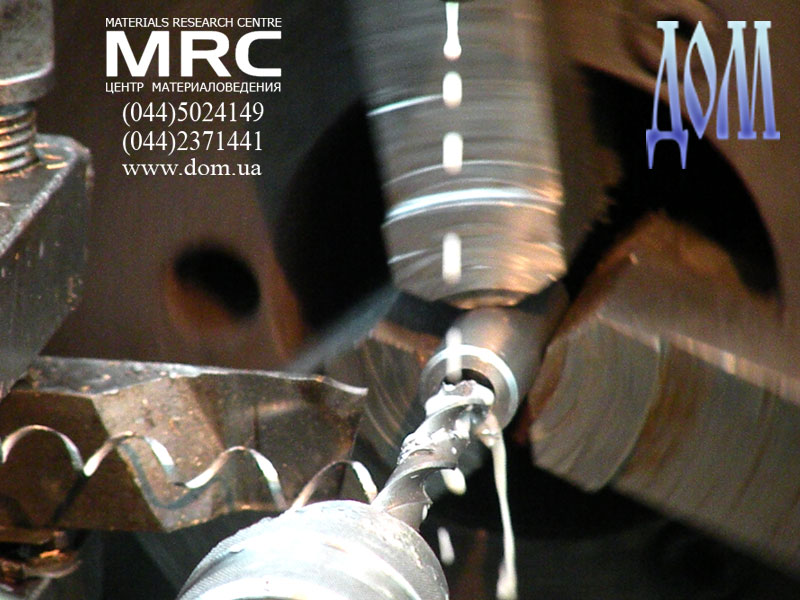

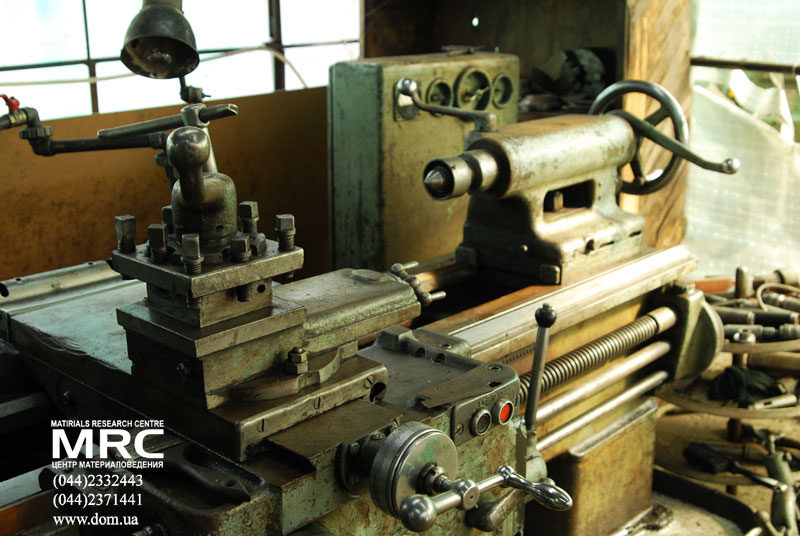

Turning operations are operations that rotate the workpiece as the primary method of moving metal against the cutting tool. Lathes are the principal machine tool used in turning. Milling operations are operations in which the cutting tool rotates to bring cutting edges to bear against the workpiece. Milling machines are the principal machine tool used in milling. Drilling operations are operations in which holes are produced or refined by bringing a rotating cutter with cutting edges at the lower extremity into contact with the workpiece. Drilling operations are done primarily in drill presses but sometimes on lathes or mills.

Miscellaneous operations are operations that strictly speaking may not be machining operations in that they may not be swarf producing operations but these operations are performed at a typical machine tool. Burnishing is an example of a miscellaneous operation. Burnishing produces no swarf but can be performed at a lathe, mill, or drill press. An unfinished workpiece requiring machining will need to have some material cut away to create a finished product. A finished product would be a workpiece that meets the specifications set out for that workpiece by engineering drawings or blueprints.

Turning Turning machines Turning
turning, a cutting tool  rotating workpart  rotating workpart

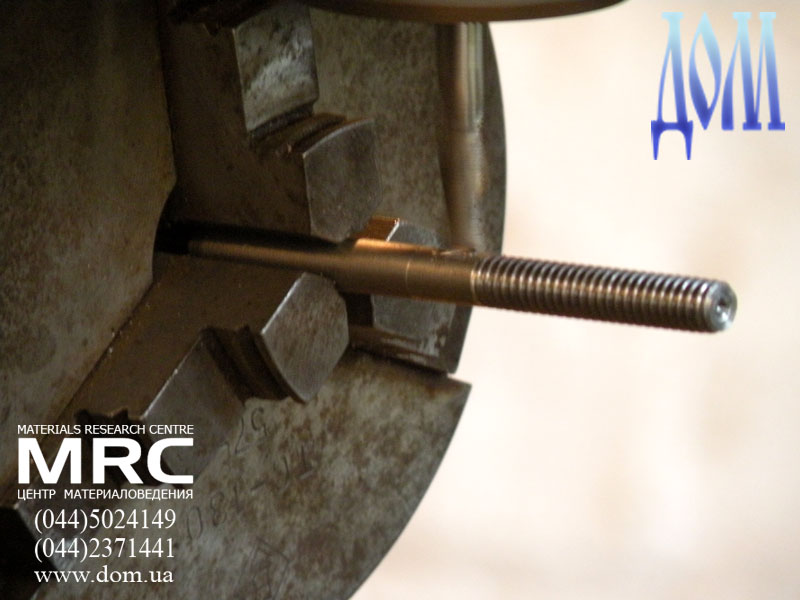

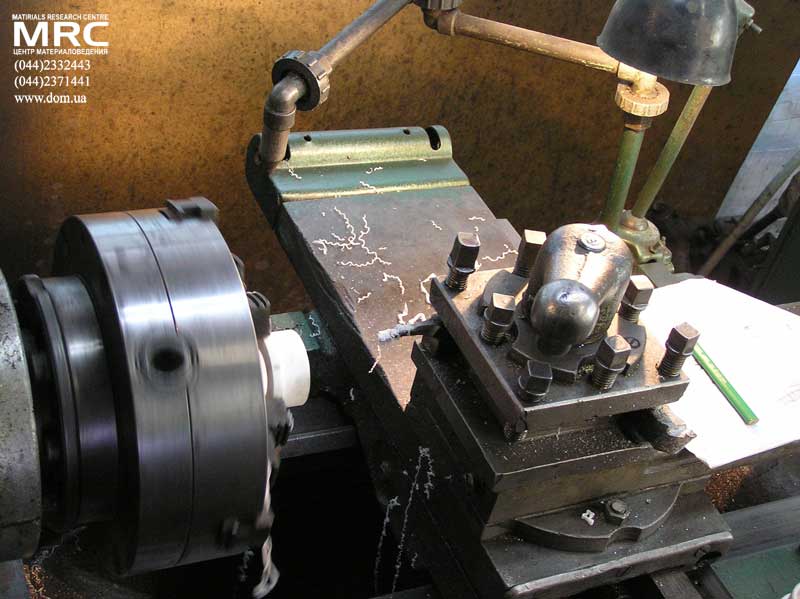

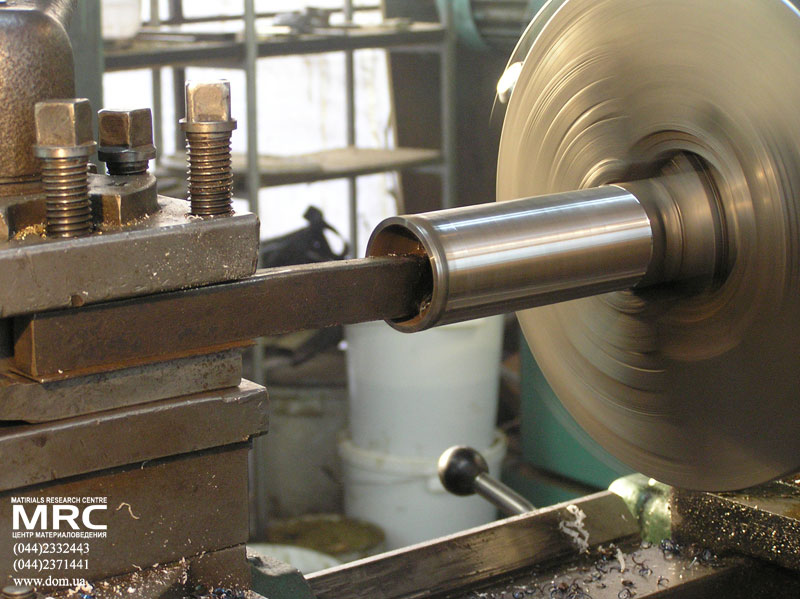

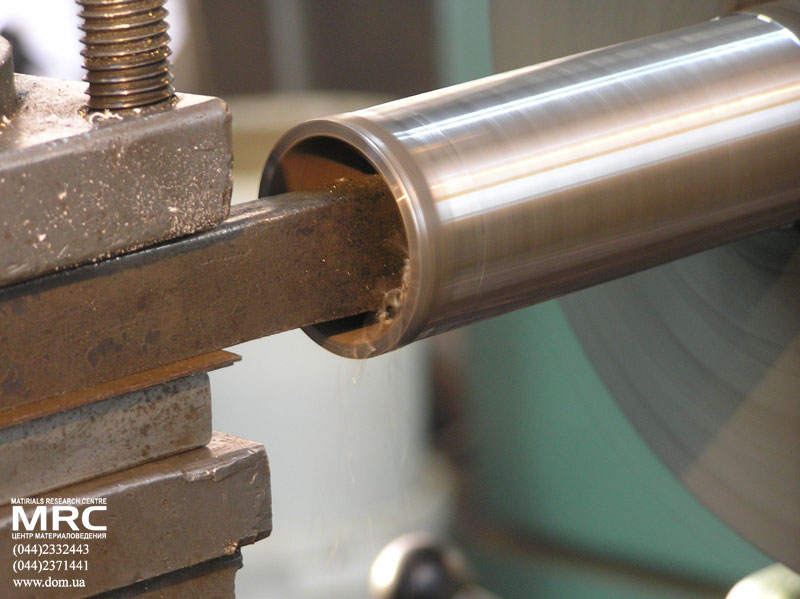

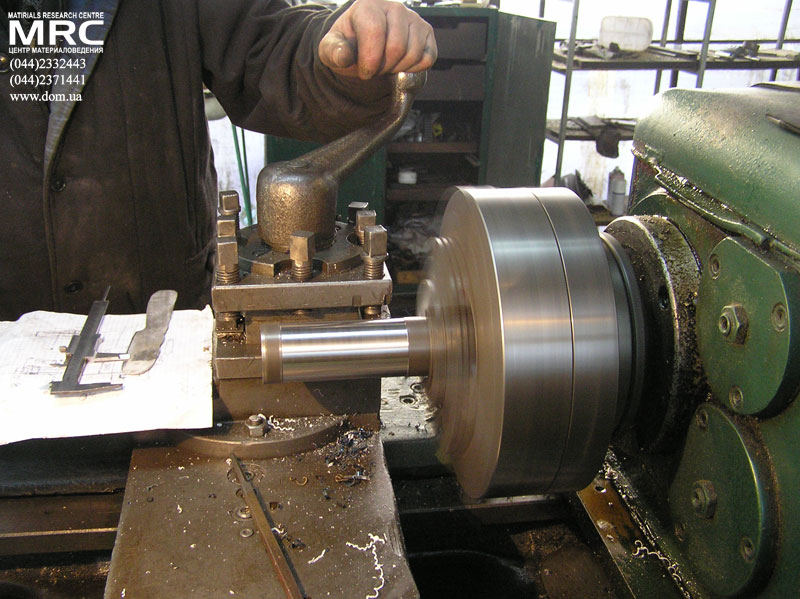

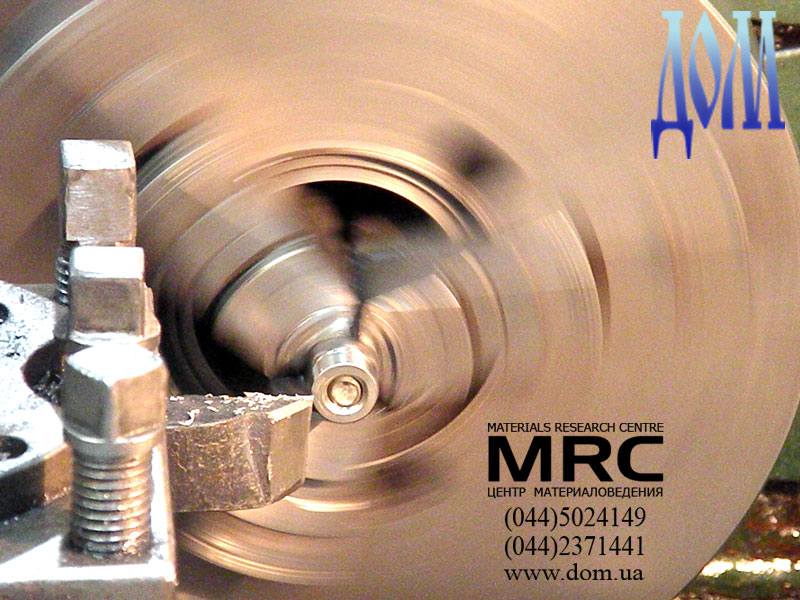

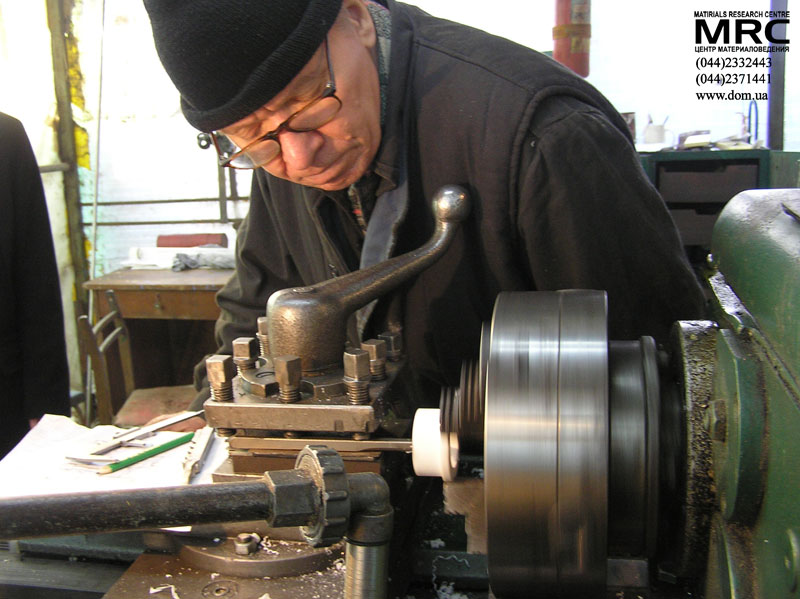

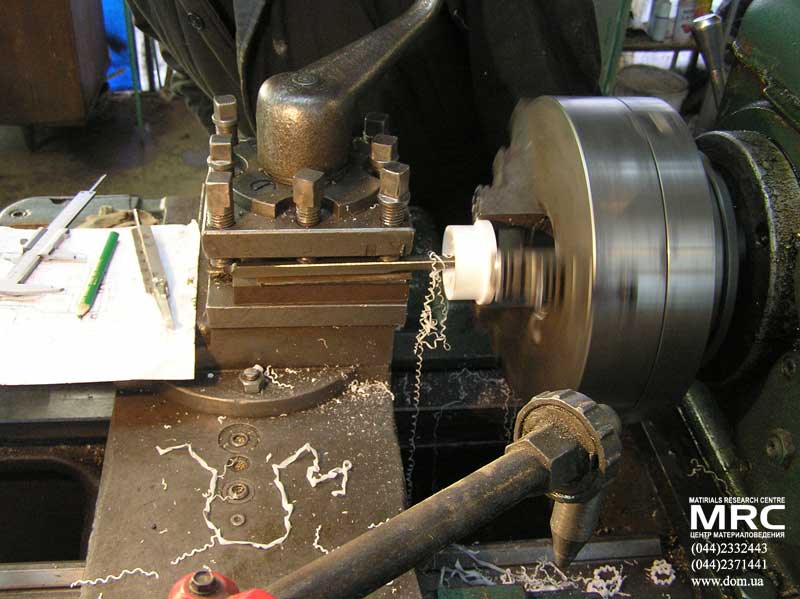

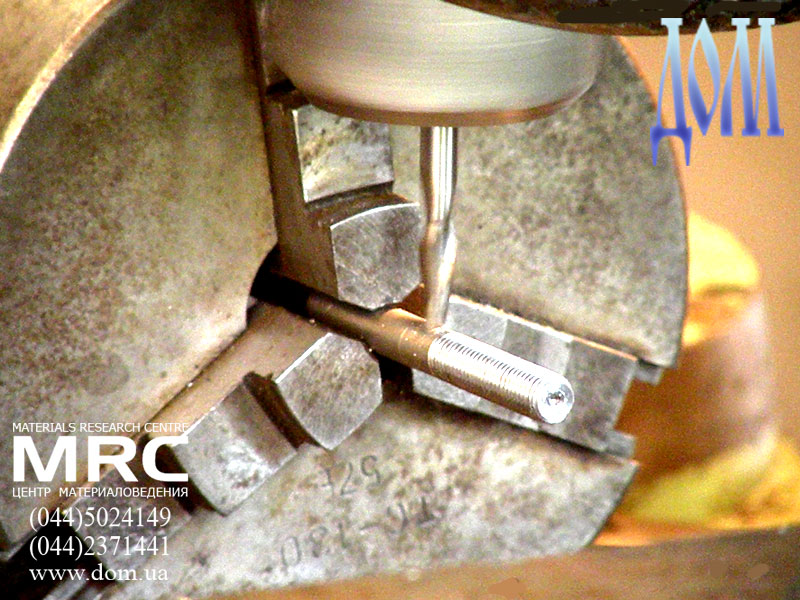

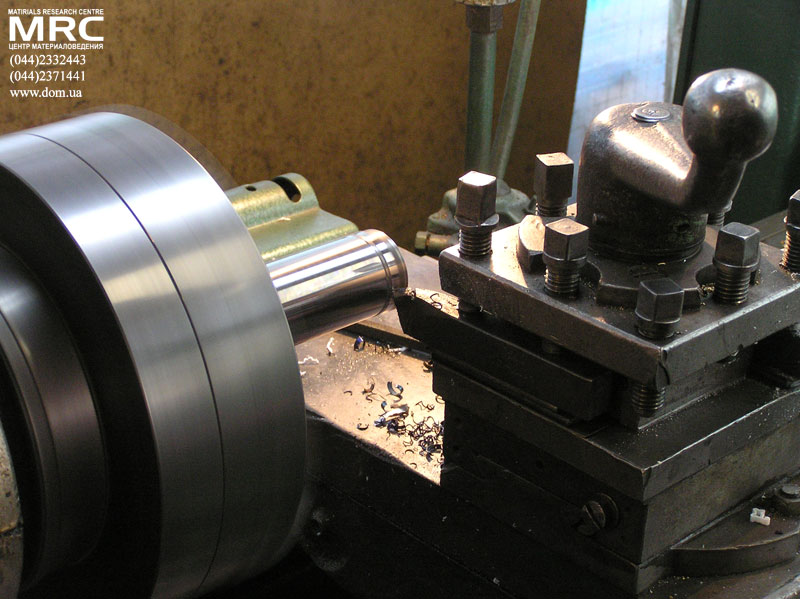

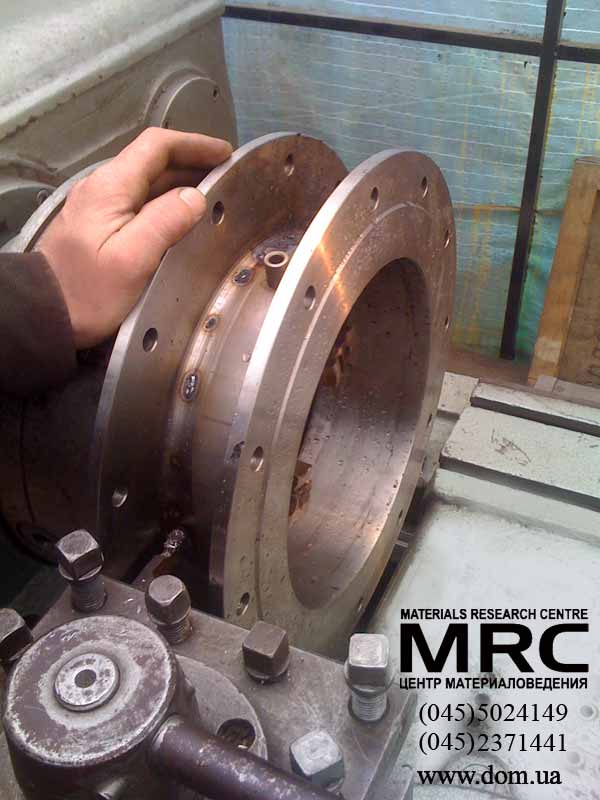

In turning, a cutting tool with a single cutting edge is used to remove material from a rotating workpiece to generate a cylindrical shape. The speed motion in turning is provided by the rotating workpart, and the feed motion is achieved by the cutting tool moving slowly in a direction parallel to the axis of rotation of the workpiece.

 rotating workpart, turning  rotating metalworking

 rotating tool with multiple cutting edges milling equipment  rotating tool with multiple cutting edges metalworking
metalworking milling operations metalworking

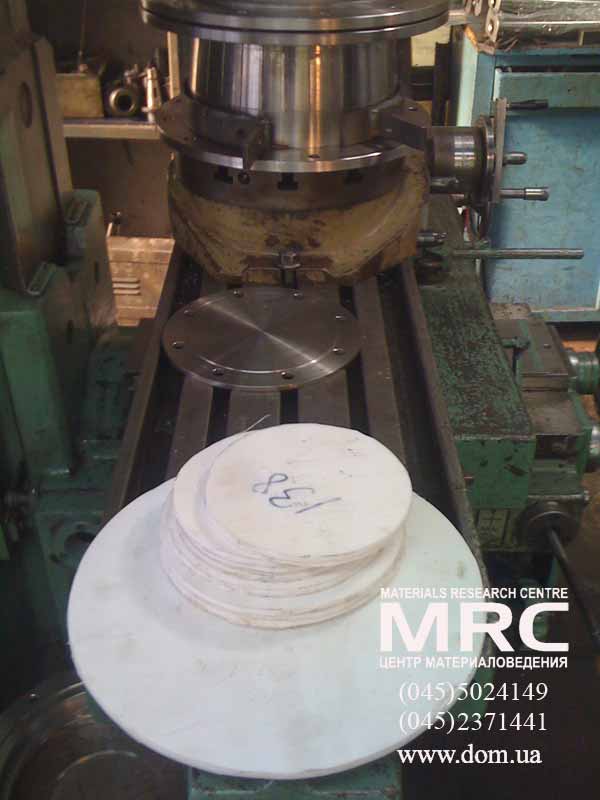

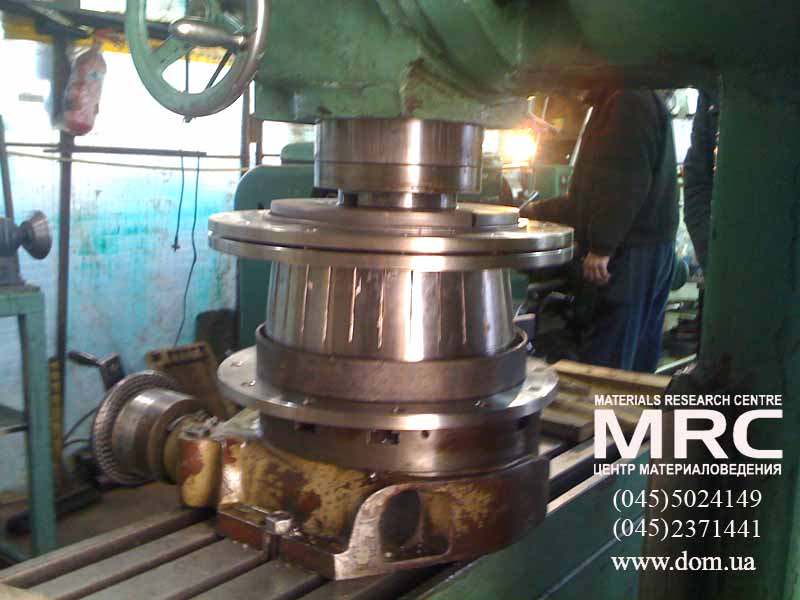

In milling, a rotating tool with multiple cutting edges is moved slowly relative to the material to generate a plane or straight surface. The direction of the feed motion is perpendicular to the tool's axis of rotation. The speed motion is provided by the rotating milling cutter.

The two basic forms of milling are: Peripheral milling and Face milling

milling equipment milling works milling

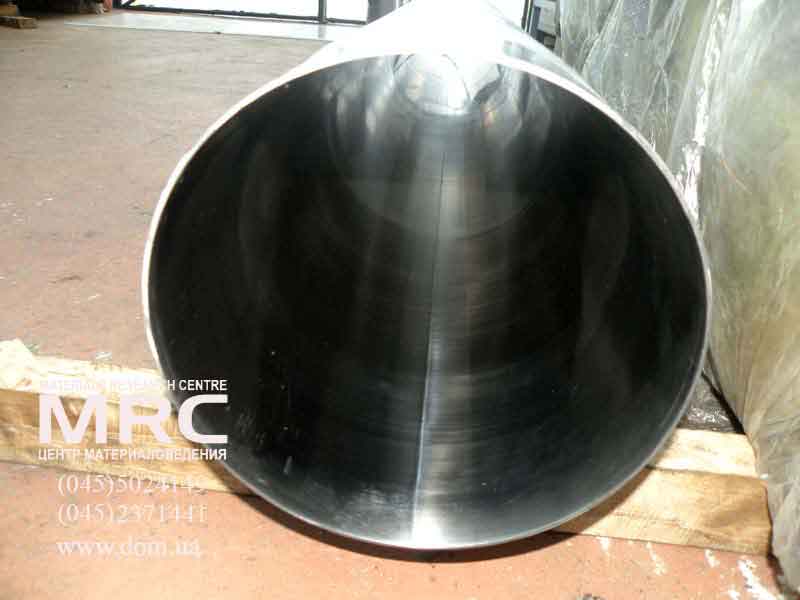

 Welding is a fabrication or sculptural process that joins materials, usually metals or thermoplastics, by causing coalescence. This is often done by melting the workpieces and adding a filler material to form a pool of molten material (the weld pool) that cools to become a strong joint, with pressure sometimes used in conjunction with heat, or by itself, to produce the weld. This is in contrast with soldering and brazing, which involve melting a lower-melting-point material between the workpieces to form a bond between them, without melting the workpieces. Many different energy sources can be used for welding, including a gas flame, an electric arc, a laser, an electron beam, friction, and ultrasound.One of the most common types of arc welding is shielded metal arc welding (SMAW) it is also known as manual metal arc welding (MMA) or stick welding. Electric current is used to strike an arc between the base material and consumable electrode rod, which is made of steel and is covered with a flux that protects the weld area from oxidation and contamination by producing carbon dioxide (CO2) gas during the welding process. The electrode core itself acts as filler material, making a separate filler unnecessary.


welding Welding Welding Welding processing
welding operations engineering drawings seams welding metal welding
assemling of structure assemling of details technological parts technological parts
equipment technological line parts technological line parts technological line parts

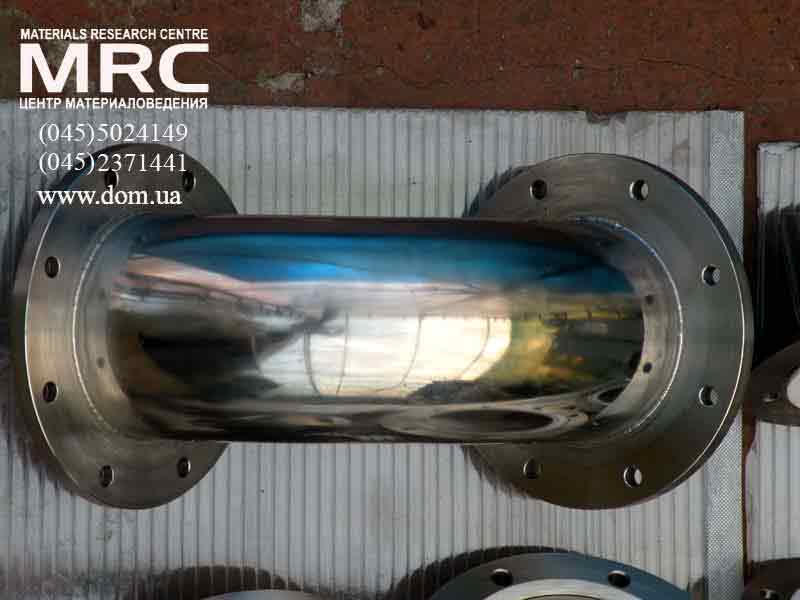

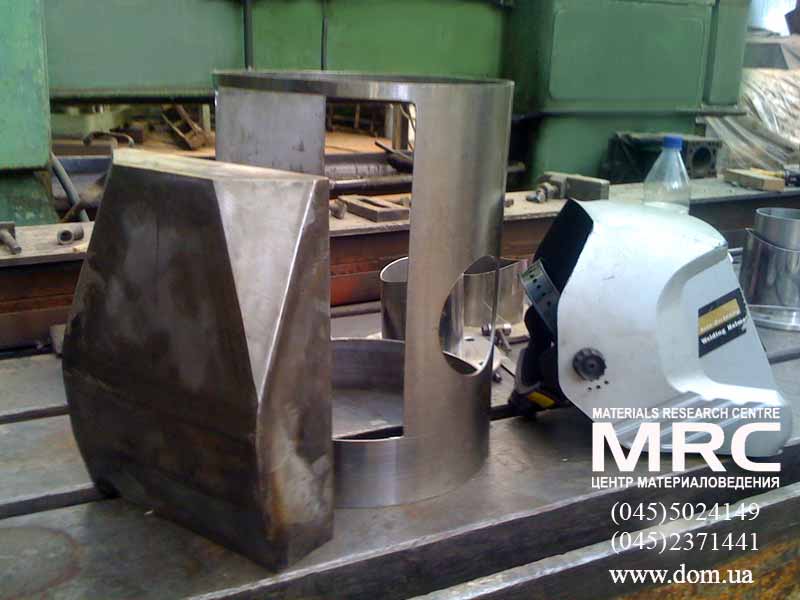

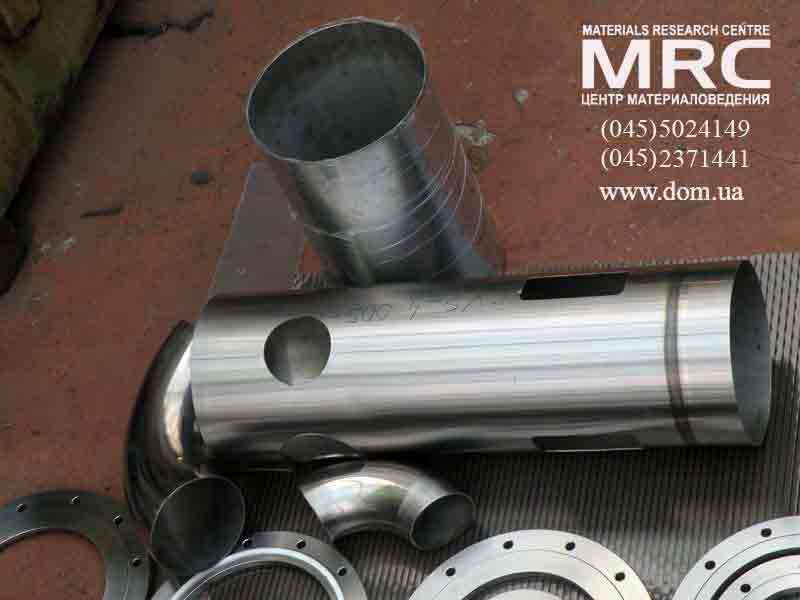

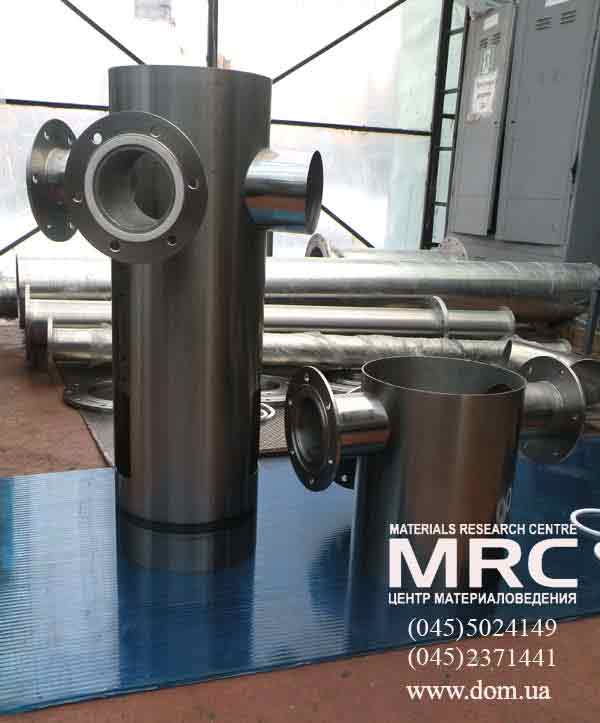

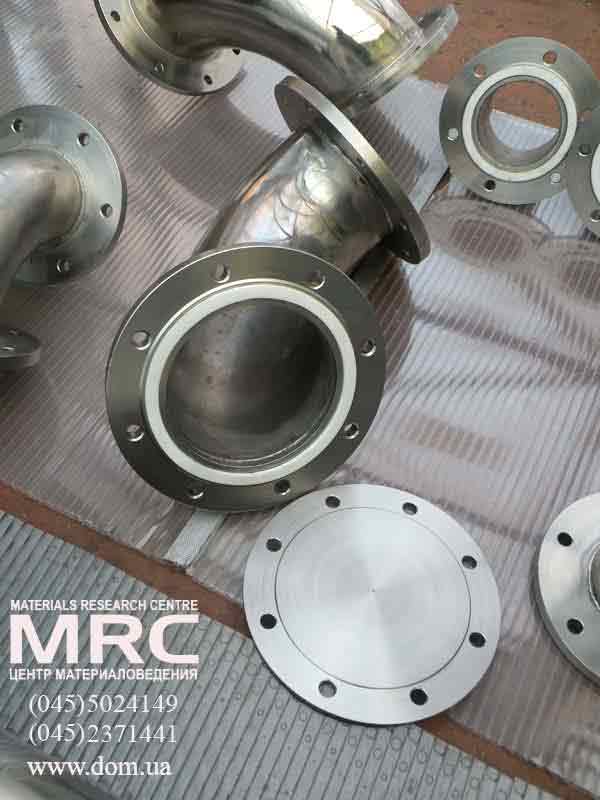

 Welding is the main focus of steel fabrication. The formed and machined parts will be assembled and tack welded into place then re-checked for accuracy. A fixture may be used to locate parts for welding if multiple weldments have been ordered. The welder then completes welding per the engineering drawings, if welding is detailed, or per his own judgment if no welding details are provided. Special precautions may be needed to prevent warping of the weldment due to heat. These may include re-designing the weldment to use less weld, welding in a staggered fashion, using a stout fixture, covering the weldment in sand during cooling, and straightening operations after welding. Straightening of warped steel weldments is done with an Oxy-acetylene torch and is somewhat of an art. Heat is selectively applied to the steel in a slow, linear sweep. The steel will have a net contraction, upon cooling, in the direction of the sweep. A highly skilled welder can remove significant warpage using this technique. Steel weldments are occasionally annealed in a low temperature oven to relieve residual stresses.

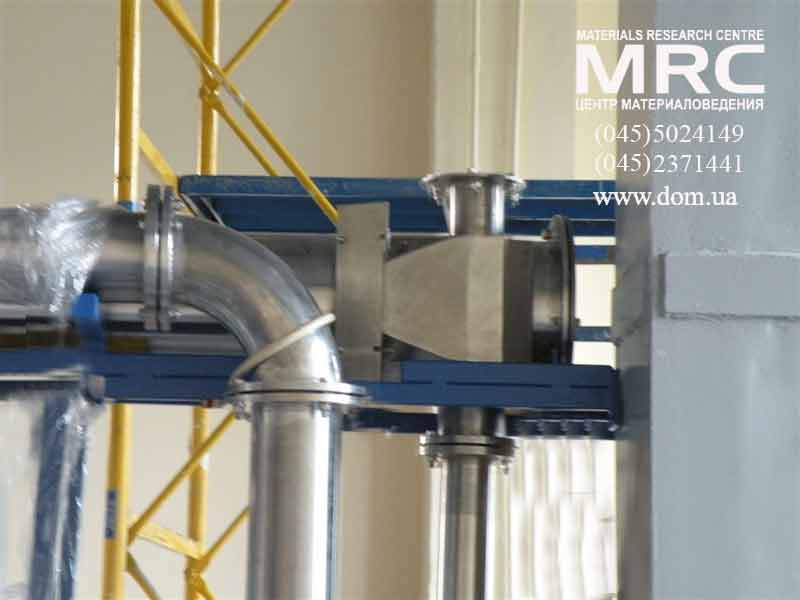

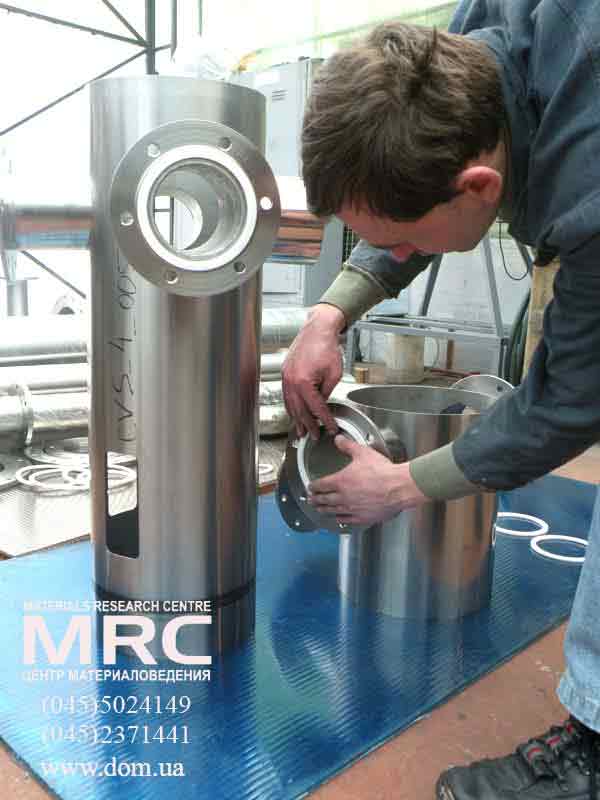

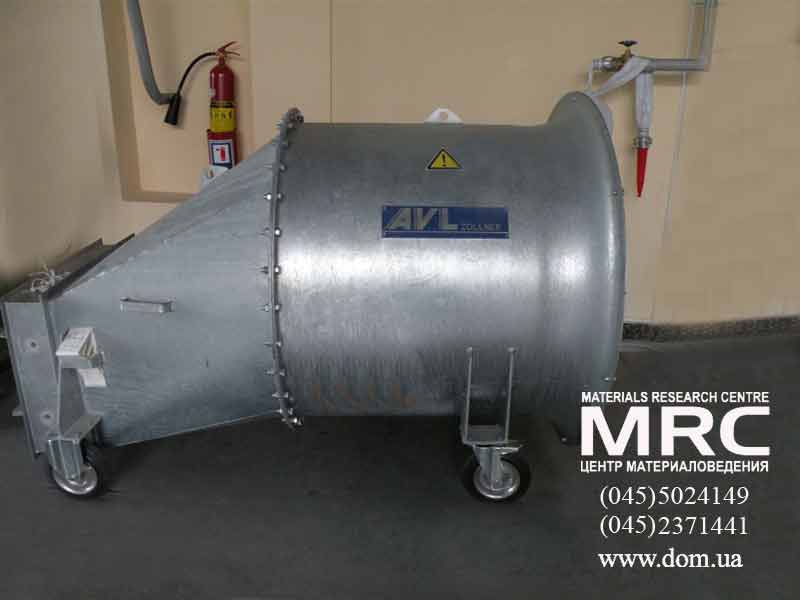

Final assembly After the weldment has cooled it is generally sand blasted, primed and painted.

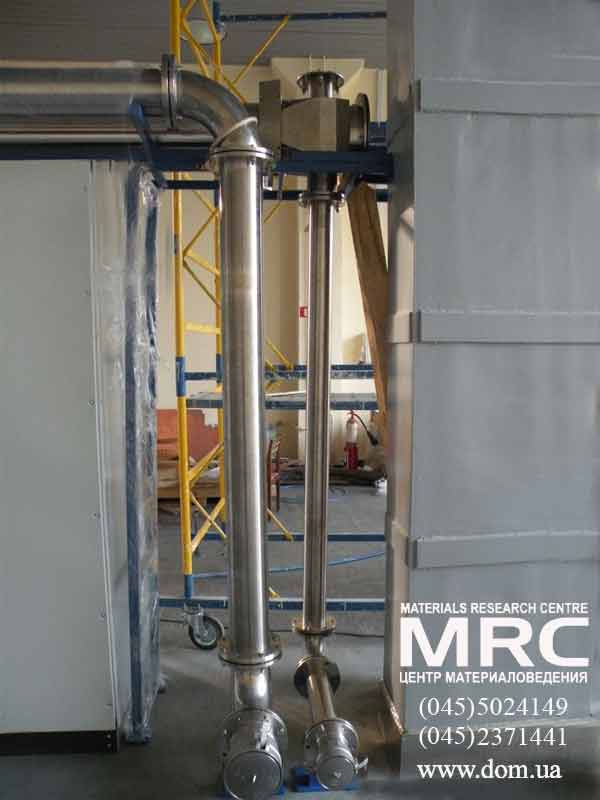

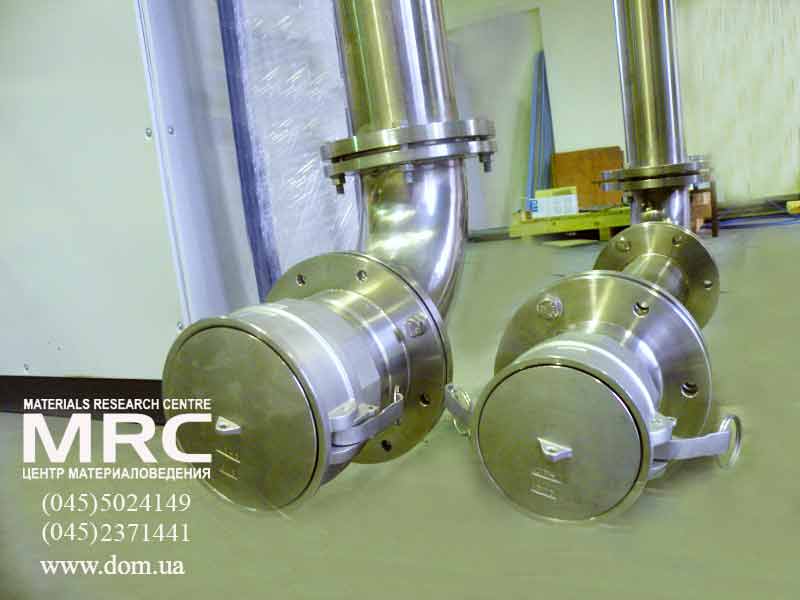

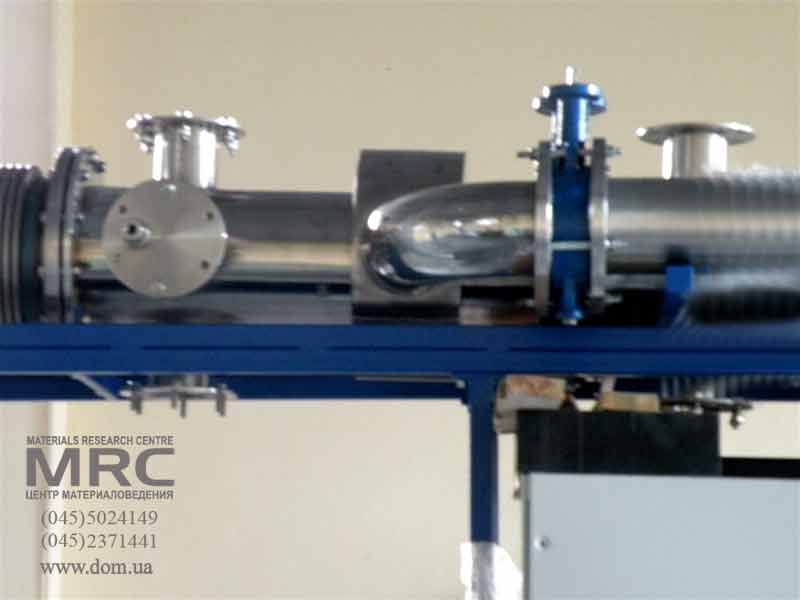

Any additional manufacturing specified by the customer is then completed. The finished product is then inspected and shipped.

Final assembling
